f-500 Encapsulator Agent

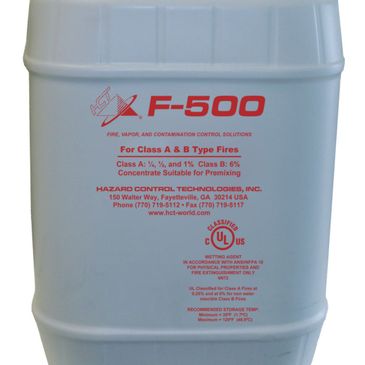

What is F-500 Encapsulator Technology?
F-500 is a Micelle Encapsulator Fire Suppression Agent. F-500 is a multi-purpose agent used worldwide for various applications. The fire suppression mechanics and technology utilized by F-500 are vastly different than conventional foam. F-500 EA is the answer to many of today’s firefighting challenges. In a world where fires have becom
F-500 is a Micelle Encapsulator Fire Suppression Agent. F-500 is a multi-purpose agent used worldwide for various applications. The fire suppression mechanics and technology utilized by F-500 are vastly different than conventional foam. F-500 EA is the answer to many of today’s firefighting challenges. In a world where fires have become hotter and more difficult to extinguish, F-500 Encapsulator Agent’s unique capabilities meet those challenges. First, F-500 EA has a remarkable ability to cool a fire and surrounding structures, with the ability to absorb 6-10 times more heat energy than plain water. Instead of scalding steam, F-500 EA releases a warm vapor. Secondly, F-500 EA encapsulates fuels forming micelles or “chemical cocoons” that render the fuel nonflammable and nonignitable. Finally, F-500 EA interrupts the free radical chain reaction. Free radicals are unburned gases produced during the combustion process that turn into smoke and soot. Inhibiting the chain reaction results in less smoke and toxins and increases visibility.
- Rapid cooling
- Encapsulates the fuel
- Interrupts the free radical chain reaction
About F-500 EA
Efficient & Cost Effective.
Fire, Vapor & Contamination Control Solutions
Efficient & Cost Effective.
Very effective and will safe you money. F500EA meets the challenges of the world's fires which have become hotter and more difficult to extinguish.
International Compliance Certifications
- ISO 9001 : 2008 Quality Management System Certification.
- Approval Certification by MPA Dresden.
- Certification of Compliance by Underwriters Laboratories.
- Registered with Environmental Protection Agency USA.
Turns Smoke to Soot.
Fire, Vapor & Contamination Control Solutions
Efficient & Cost Effective.
The F500EA has a remarkable ability to cool fire, absorb 6-10 times more heat energy than plain water. Releases warm vapor, render the fuel non flammable and non-ignitable. Interrupts the free radical chain reaction produced during combustion process that turn smoke to soot.
Fire, Vapor & Contamination Control Solutions
Fire, Vapor & Contamination Control Solutions
Fire, Vapor & Contamination Control Solutions
F500EA is the most versatile firefighting agent available. Time after time, tests and real life events have shown the superior knockdown capability and burnback resistance of F-500 EA. The fire is rapidly cooled and the fuel and free radicals are encapsulated, extinguishing the fire. F-500 EA is competitively priced with foams, so the
F500EA is the most versatile firefighting agent available. Time after time, tests and real life events have shown the superior knockdown capability and burnback resistance of F-500 EA. The fire is rapidly cooled and the fuel and free radicals are encapsulated, extinguishing the fire. F-500 EA is competitively priced with foams, so the comparison is simple. The faster the fire is out, the less agent will be used.

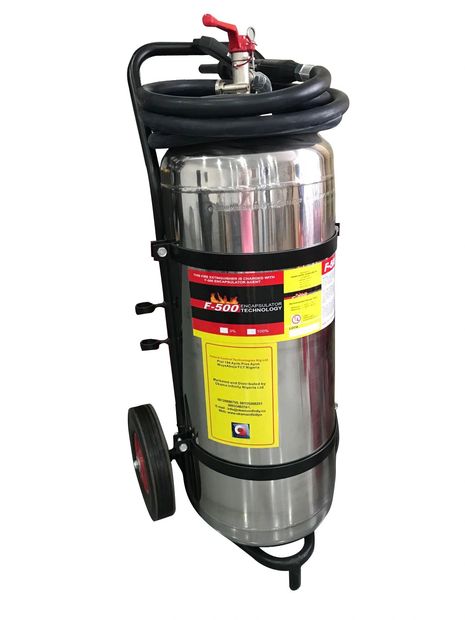

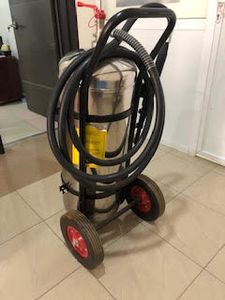

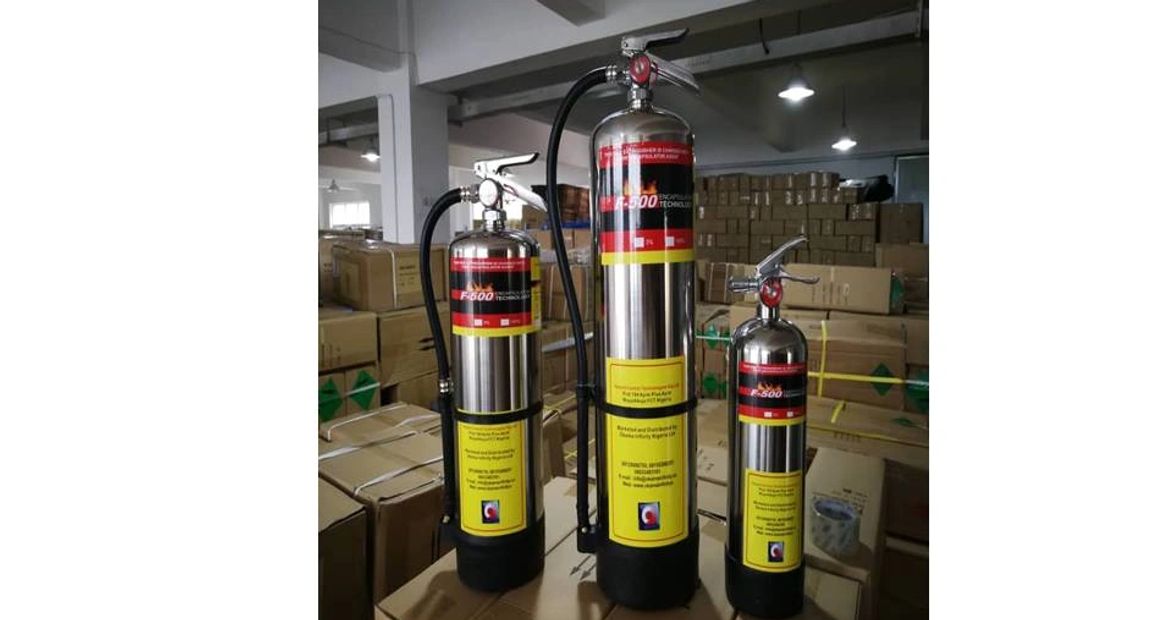

50 liters wheeled stainless steel fire extinguisher
NON CORROSIVE AND DURABLE
Our stainless steel 50 litre fire extinguisher is built onto a frame with large wheels for easy maneuvering over most ground conditions. Despite being a lot bigger than a portable fire extinguisher, the wheeled units are surprisingly easy to use by one person.
FEATURES
TUV CE0036 Standard
·Material: SS304
·Suitable against Class A, Class B (polar and nonpolar), Class K and Class D fires.
·All fire extinguishers must be serviced in accordance with BS5306
·Stainless Steel polished
·All fire extinguishers are tested no leakage.
·Chemical Agent: F-500 EA
·Working Pressure: 14Bar;
·Test Pressure: 27Bar;
SPECIFICATION
.Working pressure - 14 Bar
. Temperature range - 0 + 60 degrees centigrade
.Volume (C) - 60
.Full weight (L) - 50
.Cylinder length (mm) - 27 Bar
.Cylinder weight (kg) - 18.5
F-500 EA UL711 CERTIFIED STAINLESS STEEL FIRE EXTINGUISHERS APPROVED BY FEDERAL FIRE SERVICE NIGERIA.

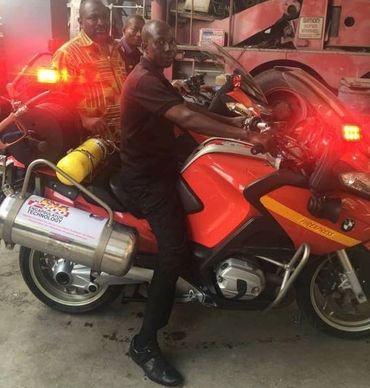

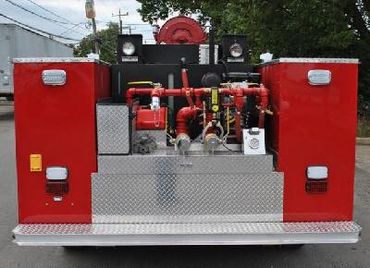

COMPRESSED AIR FIRE SYSTEM (CAFS)
Minimal Man-Power Required
Increased Performance in Fire Suppression
Minimal Man-Power Required
The F500EA Compressed Air Fire Systems are very effective, compact and mobile with the uncommon advantage of easy deployment to points of fire incidents. The units are manufactured to be easily deployed with minimal manpower requirement. It works perfectly with F500EA as the fire extinguishing agent or foam compound using compressed air as the agent of propulsion.
Specification
Increased Performance in Fire Suppression
Minimal Man-Power Required
Foam Storage Capacity: 30 Gallons (Approx. 114 liters)
Agent: F500EA or any other preferred firefighting agent
Discharge Distance: 23m
Hose Reel (Automatic): 1” x 30m
Discharge Nozzle: 1” Pistol
Discharge Time: Approx. 220 Sec.
Increased Performance in Fire Suppression
Increased Performance in Fire Suppression
Increased Performance in Fire Suppression
The use of CAFS as a primary fire attack tool can not be over emphasized. It offers increased performance in fire suppression of post-flashover fire and possibly pre-flashover situations. It proposes that less water is needed to suppress a vast majority of fires and therefore primary water tanks, and fire engines, can become smaller, pos
The use of CAFS as a primary fire attack tool can not be over emphasized. It offers increased performance in fire suppression of post-flashover fire and possibly pre-flashover situations. It proposes that less water is needed to suppress a vast majority of fires and therefore primary water tanks, and fire engines, can become smaller, possibly needing less firefighters, where attacks on the fire can be made from a safer distance. Further still, the costs associated with training firefighters in primary fire attack may well reduce substantially.
HYDROLOCK ENCAPSULATOR AGENT
TANK DEGASSING AND CLEANING
The unique ability of F-500 Encapsulator Agent to encapsulate and cool hydrocarbons is excellent for firefighting, and this have led to various other applications. One of these is tank degassing and cleaning. Since firefighting and cooling was not required, a more focused product was developed for this indust
TANK DEGASSING AND CLEANING
The unique ability of F-500 Encapsulator Agent to encapsulate and cool hydrocarbons is excellent for firefighting, and this have led to various other applications. One of these is tank degassing and cleaning. Since firefighting and cooling was not required, a more focused product was developed for this industry, HydroLock Encapsulator Agent. The HydroLock molecule is a large, amphipathic molecule with a polar head that is attracted to water, and a nonpolar tail that is attracted to hydrocarbons. Given the chance, the nonpolar tails will completely surround hydrocarbon molecules, forming micelles or protective “chemical cocoons.” For tank degassing, this is critical because an application of HydroLock and water rapidly reduces the LELs (lower explosive limit) to near zero. The vessel is perfectly safe for entry and hot work.
- Encapsulates volatile vapors
- Quickly reduces LEL levels for vessel entry
- Dissolves thick accumulations
HydroLock will encapsulate any hydrocarbon including benzene, oils, jet fuel crude oil, kerosene, gasoline and neutralizes ethanol, so it is equally effective on ethanol-blended fuels, like E10 and E85. HydroLock has been successful on H2S (hydrogen sulfide), some acids and even prevents pyrophoric iron (iron sulfide scaling) from igniting as vessels are emptied. HydroLock is nontoxic, nonhazardous, non skin-sensitizing and 100% biodegradable.
HydroLock is the fastest and most economical way to prepare the vessel. HydroLock quickly reduces the concentration of vapors below the Lower Explosive Limit (LEL) and breaks down residual sludge and wall build-up, providing quick access into the tank. The work can be completed and the team can move on the next project. An operation that used to take days can be accomplished in hours. For underground Storage Tanks (UST) a 3% solution of HydroLock and water will degas and clean a UST rapidly, reducing the concentration of vapors below the Lower Explosive Limit (LEL) for quick entry. HydroLock can be sprayed on the vessel or circulated. It is excellent for cleaning or vessel decommissioning and can even be used for soil remediation, since it is an encapsulator agent. HydroLock facilitates and accelerates the bio-remediation process of naturally occurring microorganisms.

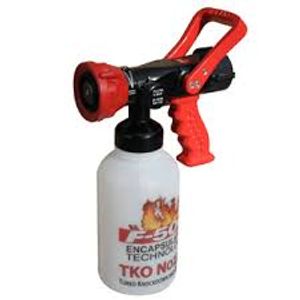

TKO F-500 EA INCIPIENT ATTACK NOZZLES
The new F-500 EA “Turbo Knockdown and Overhaul” (TKO) Nozzles carry F-500 Encapsulator Agent to deliver extreme knockdown power. The F-500 EA encapsulates the fuel, cools the fuel and surrounding structures and interrupts the free radical chain reaction. Any one of these three elements can extinguish a fire. Under the nozzle, is a 2 liter (.52 gallon) container that instantly educts a proportioned amount of F-500 EA into the water stream. The nozzles are available with flow rates of 75 liters per minute (20 gpm) or 130 liters per minute (35 gpm). The nozzles are adjustable for streaming or fog pattern and the proportioning rate can be easily changed. If more F-500 EA is needed, a new bottle can be quickly replaced. The hose connection is a standard 1 ½” NH-NST fitting.
DUST WASH CLEANING SOLUTION
Coal dust, especially PRB coal dust is very combustible and prone to spontaneous combustion the longer it is exposed to air and allowed to oxidize. The danger comes from small puffs or explosions that occur. If your facility is not free of coal dust, these minor explosions cause dust to fall from rafters, light fixtures and walls creating a second, much larger explosion. To mitigate the dust, plain water is often used, but if there is a hot spot, water will cause a flare-up that could cause harm to personnel or even a secondary explosion. Dust Wash will not cause burning coal to flare-up. In addition, tripper rooms and other areas of the plant often lack adequate drainage. Water used to clean the dust ends up in the silo. Too much water in the silo can lead to spontaneous combustion. A simple solution is to apply Dust Wash at 0.5% to 1% with a 2-3 gpm power washer. Dust Wash is a combination encapsulator agent to capture the coal dust and a foaming agent to lift the dust from the surface. Very little water will be used and the Dust Wash required will be minimal. A 55-gallon drum of Dust Wash should last about 30 hours of continuous cleaning.

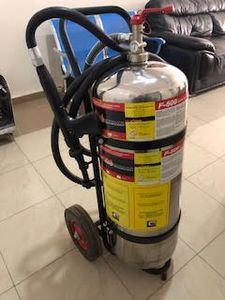

F-500 EA FIRE EXTINGUSHERS
The F-500 EA Fire Extinguisher can be used for hydrocarbon spill control. Instead of spreading absorbent, which becomes flammable after application, the F-500 EA solution will render the fuel nonflammable and non-ignitable. A single fire extinguisher could easily encapsulate a half-gallon fuel spill in minutes, perfect for small gas station spills. The F-500 EA Fire Extinguisher is available with three different nozzles; straight bore, water mist wand and 4A, which has four streams for better penetration and broader coverage. The stainless steel cylinder will provide many years of service and the F-500 EA will give you the extinguishing power needed for most incipient fires.

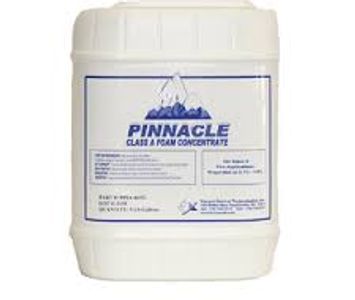

PINNACLE FIREFIGHTING FOAMS
Hazard Control Technologies Pinnacle foams are high-quality firefighting agents offered at an economical price. Pinnacle is available in three formulations to cover a broad spectrum of firefighting challenges. All three foams are designed for the maximum penetration possible while providing a durable, thick foam. These high-performance foams offer fast knockdown and maintain a quality blanket. All Pinnacle foams are suitable for use in Type III nozzles, monitors, foam tubes, CAFS and fixed suppression systems, including HCT’s CCS Systems and can be used with fresh, brackish or salt water. Class A fires are the most common fires encountered by firefighters. In many cases, plain water is used, but economical, Pinnacle Class A foam makes water more effective. In areas where water is not available, Pinnacle Class A foam can make the difference by making the water on your truck stretch farther. Pinnacle Class A foam forms a thick, wet blanket that smothers, penetrates, clings and lasts. Pinnacle foam is noncorrosive and environmentally friendly.
F-500 EA THE FUTURE OF FIREFIGHTING
Welcome! Check out our website for F-500 EA firefighting suppressant approved by NFPA for extinguishing all classes of fire effectively including lithium-ion battery fires. Also excellent for Fire Rescue and Emergency Operations.
